The detailed information
38ZYN Motor General Specification:
Bearing: High Quality Ball Bearing
Magnet: NdFeB Magnet, 2- Poles
Protection Class: IP50 (Option IP54)
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
38ZYN Motor Main Technical Specification:
Model | Unit | 38ZYN01A | 38ZYN02A | 38ZYN03A | 38ZYN04A |
Rated Voltage | VDC | 24v (option for 12v up to 60vdc) | |||
No Load Speed | Rpm | 3950 | 3950 | 3950 | 3950 |
Rated Torque | mN.m | 55 | 70 | 100 | 120 |
Rated Speed | Rpm | 3300 | 3250 | 3200 | 3200 |
Rated Current | A | 1.13 | 1.42 | 2.0 | 2.4 |
Output Power | W | 19 | 23.8 | 33.5 | 40 |
Weight | G | 260 | 300 | 350 | 390 |
Motor Length | Mm | 60 | 70 | 80 | 90 |

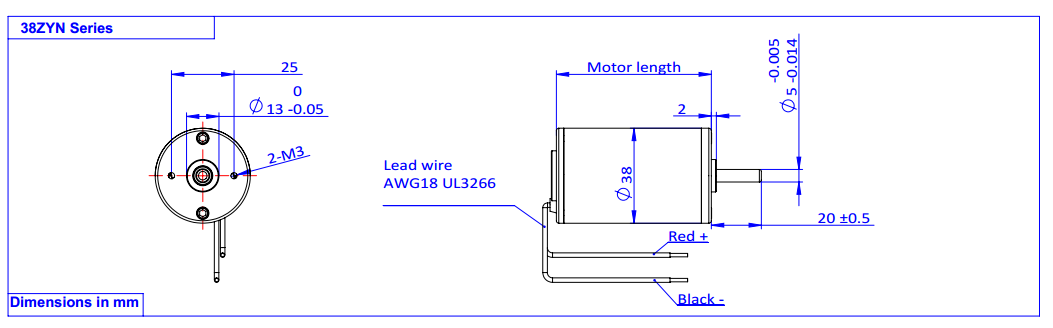

Drawing:

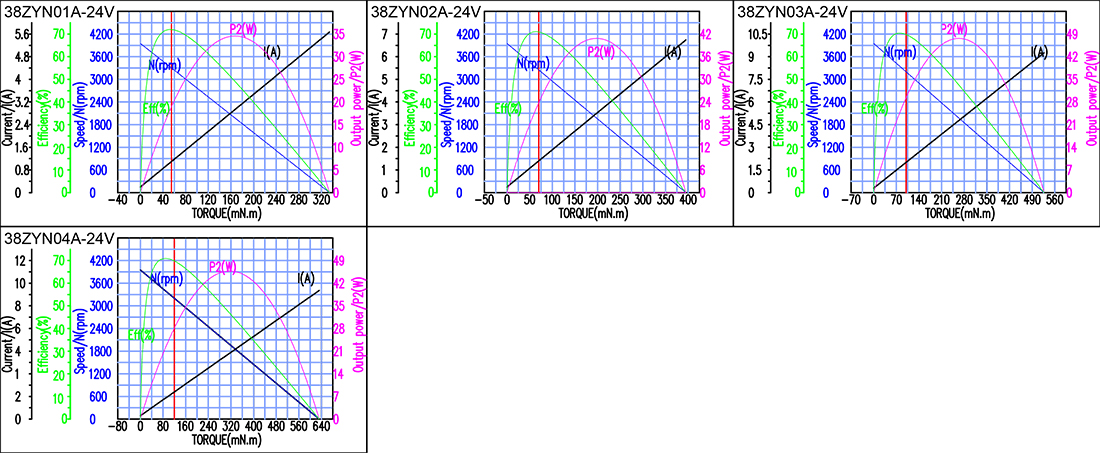

Speed-Torque Curve：
