The detailed information
Motor Specifications
High quality ball bearing
Hard ferrite magnet, 2- poles
Protection class IP50
Insulation class: F
Certified by CE and ROHS
Options
Customized voltage, winding, shaft, mounting, and lead configurations
Motor Main Characteristic
Model | 52ZYT-110 | 52ZYT-117 | 52ZYT-125 |
Rated Voltage | 24v (option for 12v up to 115vdc) | ||
Rated Speed (rpm) | 11000 | 11000 | 11000 |
Rated Torque (Nm) | 0.25 | 0.28 | 0.3 |
No load speed (rpm) | 12000 | 12000 | 12000 |
Weight (Kg) | 0.85 | 0.9 | 1 |
Motor Length (mm) | 110 | 117 | 125 |
Output Power (W) | 288 | 323 | 346 |

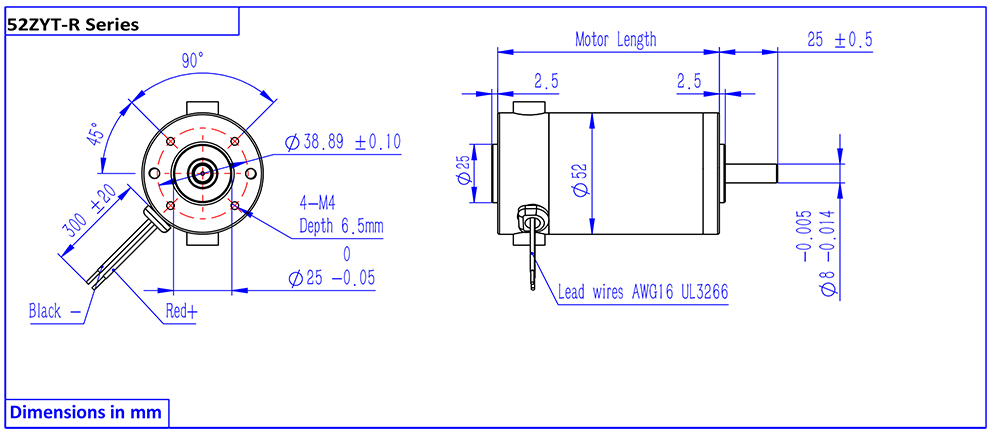

Drawing
