52ZYT Motor General Specification:
Bearing: High Quality Ball Bearing
Magnet: Hard Ferrite Magnet, 2- Poles
Protection Class: IP50 （Option for IP54）
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
Motor Main Technical Specification:
Model | Unit | 52ZYT01A | 52ZYT02A | 52ZYT03A | 52ZYT04A |
Rated Voltage | VDC | 24v (option for 12v up to 60vdc) | |||
No Load Speed | Rpm | 4200 | 4200 | 4200 | 4200 |
Rated Torque | N.m | 0.11 | 0.20 | 0.27 | 0.35 |
Rated Speed | Rpm | 3700 | 3500 | 3600 | 3600 |
Rated Current | A | 2.5 | 4.2 | 5.8 | 7.4 |
Output Power | W | 42.5 | 73 | 102 | 132 |
Weight | Kg | 0.85 | 1.0 | 1.15 | 1.30 |
Motor Length | Mm | 95 | 110 | 125 | 140 |

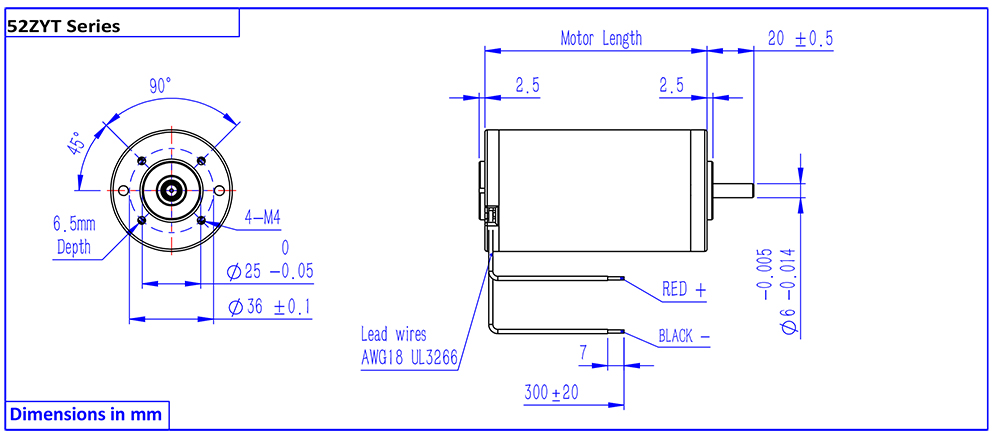

Drawing:
