The detailed information
Motor General Specification:
Bearing: High Quality Ball Bearing
Magnet: Hard Ferrite Magnet, 2- Poles
Protection Class: IP40
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
54ZYT Motor Main Technical Specification:
Model | Unit | 54ZYT01A | 54ZYT02A | 54ZYT03A | 54ZYT04A |
Rated Voltage | VDC | 24v (option for 12v up to 90vdc) | |||
No Load Speed | Rpm | 3630 | 2990 | 3150 | 3160 |
Rated Torque | N.m | 0.184 | 0.219 | 0.261 | 0.353 |
Rated Speed | Rpm | 3200 | 2580 | 2770 | 2810 |
Rated Current | A | 3.5 | 3.3 | 4.3 | 5.8 |
Output Power | W | 62 | 59 | 76 | 104 |
Weight | Kg | 1 | 1.12 | 1.28 | 1.55 |
Motor Length | Mm | 103.5 | 113 | 126 | 145 |

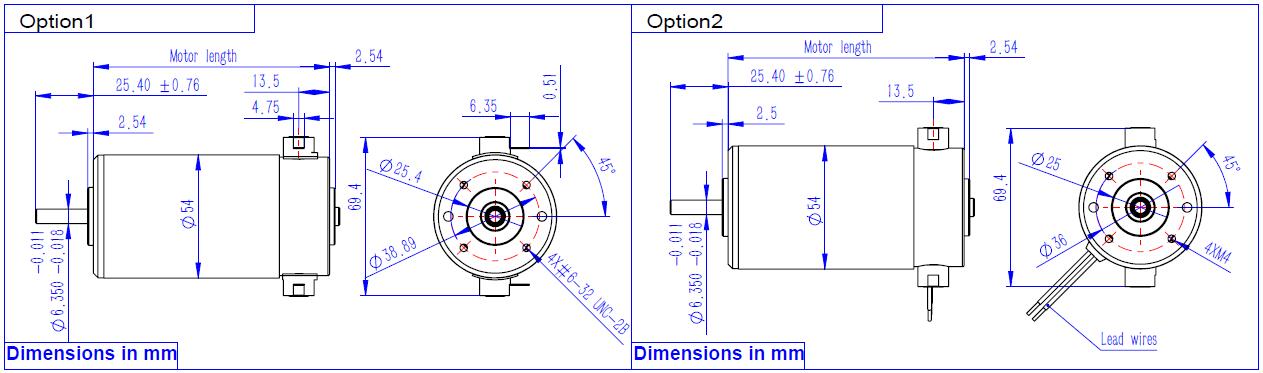

Drawing:

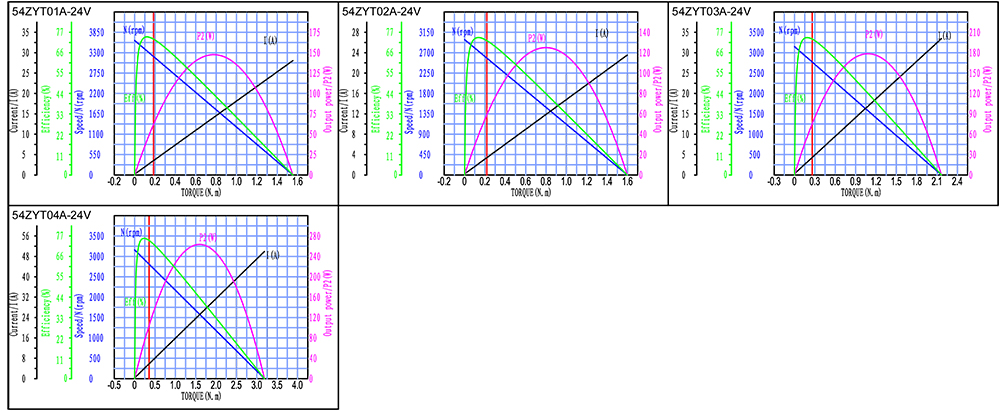

Speed-Torque Curve：
