The detailed information
76ZYT Motor General Specification:
Bearing: High Quality Ball Bearing
Magnet: Hard Ferrite Magnet, 2- Poles
Protection Class: IP54
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation

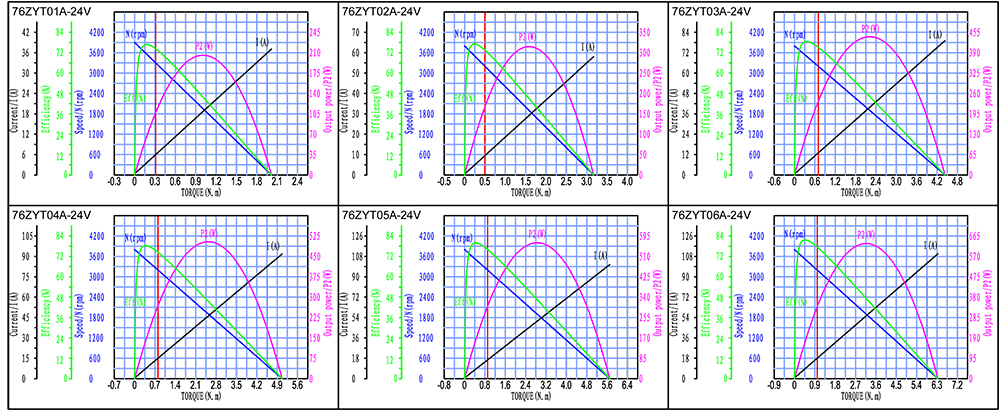

76ZYT Motor Main Technical Specification:
Model | Unit | 76ZYT01A | 76ZYT02A | 76ZYT03A | 76ZYT04A | 76ZYT05A | 76ZYT06A |
Rated Voltage | VDC | 24v (option for 12v up to 220vdc) | |||||
No Load Speed | Rpm | 3900 | 3800 | 3800 | 3800 | 3800 | 3800 |
Rated Torque | N.m | 0.31 | 0.50 | 0.70 | 0.80 | 0.90 | 1.0 |
Rated Speed | Rpm | 3300 | 3200 | 3200 | 3200 | 3200 | 3200 |
Rated Current | A | 6.0 | 9.0 | 12.5 | 15.0 | 16.5 | 18.0 |
Output Power | W | 107 | 167 | 217 | 268 | 301 | 335 |
Weight | Kg | 1.5 | 2.0 | 2.5 | 2.85 | 3.0 | 3.15 |
Motor Length | Mm | 98 | 118 | 138 | 150 | 160 | 171 |

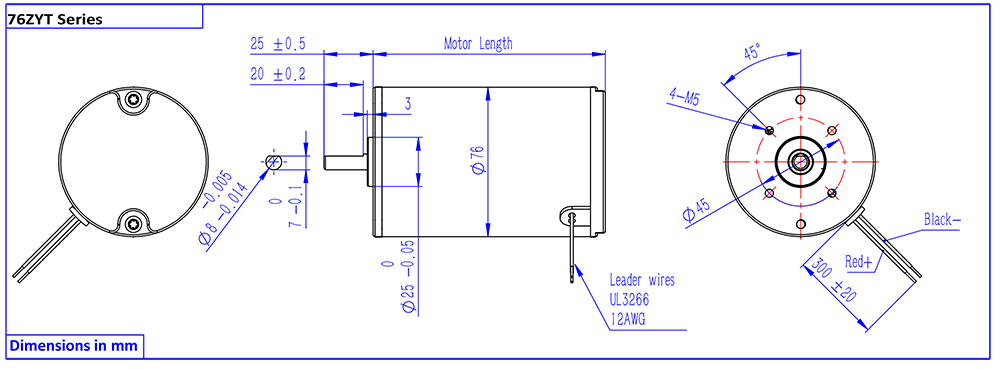

Drawing:
