The detailed information
80ZYT Motor General Specification:
Bearing: High Quality Ball Bearing
Magnet: Hard Ferrite Magnet, 2- Poles
Protection Class: IP50 （Option for IP54）
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
80ZYT Motor Main Technical Specification:
Model | Unit | 80ZYT01A | 80ZYT02A | 80ZYT03A | 80ZYT04A |
Rated Voltage | VDC | 24v (option for 12v up to 220vdc) | |||
No Load Speed | Rpm | 3600 | 3600 | 3500 | 3500 |
Rated Torque | N.m | 0.6 | 0.8 | 1.0 | 1.2 |
Rated Speed | Rpm | 3150 | 3150 | 3050 | 3050 |
Rated Current | A | 10.0 | 13.5 | 15.5 | 20.0 |
Output Power | W | 200 | 265 | 320 | 383 |
Weight | Kg | 2.5 | 3 | 3.5 | 4.0 |
Motor Length | Mm | 120 | 140 | 160 | 175 |

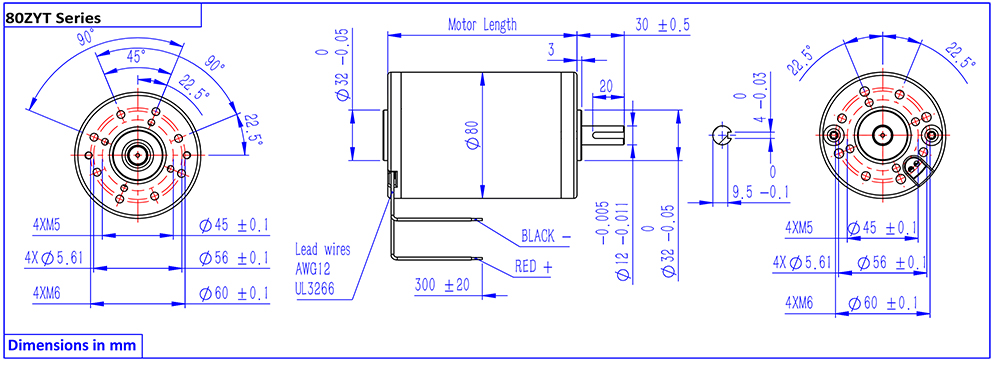

Drawing:

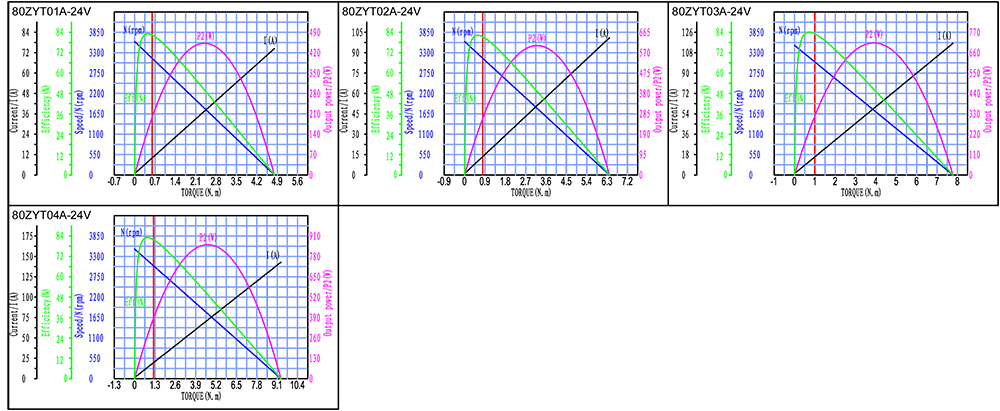

Speed-Torque Curve:
