The detailed information
90ZYT Motor General Specification:
Bearing: High Quality Ball Bearing
Magnet: Hard Ferrite Magnet, 4- Poles
Protection Class: IP50 （Option for IP54）
Insulation Class: Class F / Working Temperature: -40℃~+140℃
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
90ZYT Motor Main Technical Specifications:
Model | Unit | 90ZYT-R01A | 90ZYT-R02A | 90ZYT-R03A |
Rated Voltage | VDC | 24v (option for 12v 36v 48v up to 220vdc) | ||
No Load Speed | Rpm | 3600 | 3600 | 3600 |
Rated Torque | N.m | 1.2 | 1.5 | 1.8 |
Rated Speed | N.m | 3150 | 3200 | 3250 |
Rated Current | A | 21 | 26 | 31 |
Output Power | W | 396 | 503 | 613 |
Weight | Kg | 3.5 | 4 | 4.5 |
Motor Length | Mm | 155 | 180 | 199 |

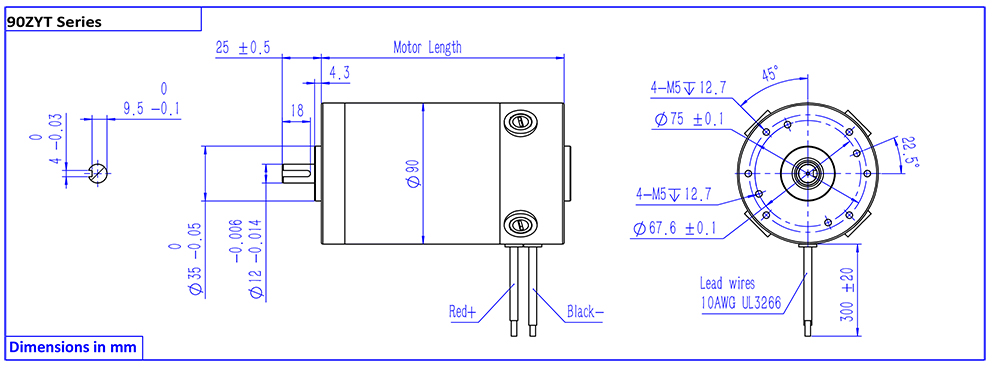

Drawing:

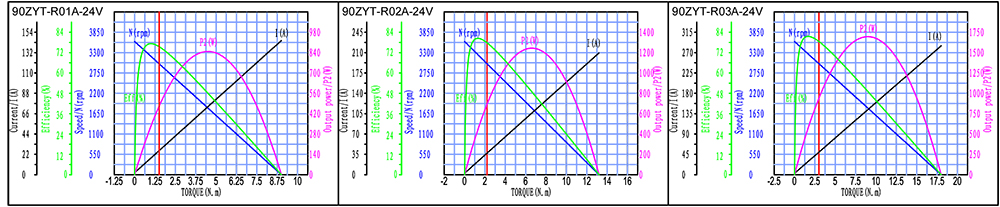

Speed-Torque Curve:
