Motor Specifications
High quality ball bearing
Hard ferrite magnet, 2- poles
Protection class IP50
Insulation class: F
Certified by CE and ROHS
Motor Main Characteristic
Model | 42ZYT01A | 42ZYT02A | 42ZYT03A | 42ZYT04A | 42ZYT04B | 42ZYT04C |
Rated Voltage | 24v (option for 12v up to 60vdc) | |||||
Rated Speed （rpm） | 3500 | 3100 | 3300 | 3350 | 4700 | 8770 |
Rated Torque (mNm) | 38 | 57 | 65 | 70 | 100 | 100 |
No Load Speed (rpm) | 4200 | 3800 | 4200 | 4000 | 5900 | 10000 |
Weight (g) | 390 | 490 | 520 | 550 | 550 | 550 |
Motor Length (mm) | 70 | 80 | 85 | 90 | 90 | 90 |
Output Power (w) | 14 | 19 | 22 | 25 | 49 | 92 |
Planetary Gearbox Specifications
Gearbox Model: 42JXE100K (Helical Gear)
Ring material | E : Metal |
Bearing at output | Ball bearings |
Max. Radial load(10mm from flange) | ≤80N |
Max. shaft axial load | ≤30N |
Radial play of shaft (near to flange) | ≤0.06mm |
Axial play of shaft | ≤0.3mm |
Backlash at no-load) | ≤2.5° |
Shaft press fit force max | ≤150N |
Reduction ratio | Rated tolerance torque | Max momentary tolerance torque | Efficiency | L(mm) | Weight(g) |
1/3.7 1/5.2 | 1.0N.m | 3.0N.m | 90% | 31.5±0.5 | 244 |
1/14 1/19 1/27 | 4.0N.m | 12N.m | 81% | 42.1±0.5 | 314 |
1/51 1/71 1/100 1/139 | 8.0N.m | 25N.m | 73% | 52.5±0.5 | 433 |
1/182 1/219 1/254 1/306 1/354 1/427 1/495 1/596 | 10N.m | 30N.m | 66% | 62.9±0.5 | 519 |

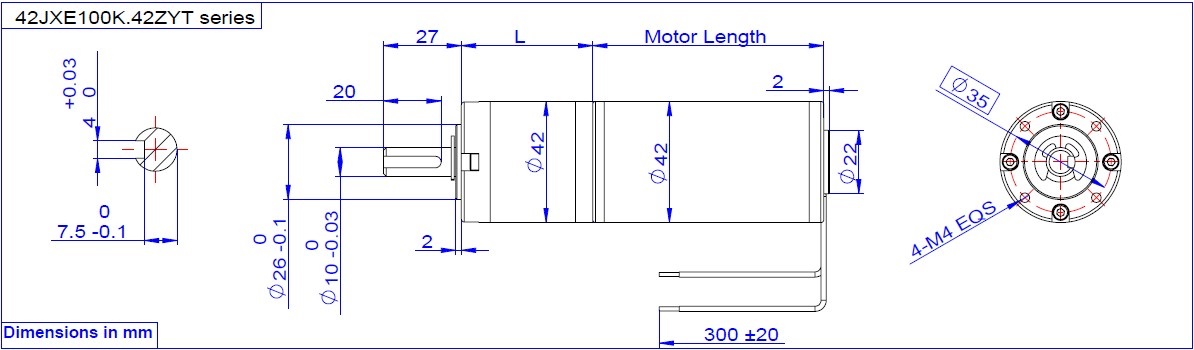

Drawing
