The detailed information
Motor Specifications
High quality ball bearing
Hard ferrite magnet, 2- poles
Protection class IP50
Insulation class: F
Certified by CE and ROHS
Motor Main Characteristics
Model | 42ZYT01A | 42ZYT02A | 42ZYT03A | 42ZYT04A | 42ZYT04B | 42ZYT04C |
Rated Voltage | 24v (option for 12v up to 60vdc) | |||||
Rated Speed (rpm) | 3500 | 3100 | 3300 | 3350 | 4700 | 8770 |
Rated Torque (mNm) | 38 | 57 | 65 | 70 | 100 | 100 |
No Load Speed (rpm) | 4200 | 3800 | 4200 | 4000 | 5900 | 10000 |
Weight (g) | 390 | 490 | 520 | 550 | 550 | 550 |
Motor Length (mm) | 70 | 80 | 85 | 90 | 90 | 90 |
Output Power (w) | 14 | 19 | 22 | 25 | 49 | 92 |
Planetary Gearbox Specifications
Gearbox Model: 42JXGT200K
Ring material | E : Metal |
Bearing at output | Ball bearings |
Max. Radial load(10mm from flange) | ≤80N |
Max. shaft axial load | ≤30N |
Radial play of shaft (near to flange) | ≤0.06mm |
Axial play of shaft | ≤0.3mm |
Backlash at no-load) | ≤2.5° |
Shaft press fit force max | ≤150N |
Reduction ratio | Rated tolerance torque | Max momentary tolerance torque | Efficiency | L(mm) | Weight(g) |
1/4.44 | 2.0N.m | 6.0N.m | 90% | 39.8±0.5 | 244 |
1/17 1/22 | 8.0N.m | 25N.m | 81% | 50.4±0.5 | 323 |
1/65 1/83 1/106 | 16N.m | 50N.m | 73% | 60.8±0.5 | 380 |
1/247 1/316 1/403 1/515 | 20N.m | 60N.m | 66% | 71.2±0.5 | 468 |
1/944 1/1206 1/1540 1/1966 1/2510 | 20N.m | 60N.m | 59% | 81.6±0.5 | 548 |

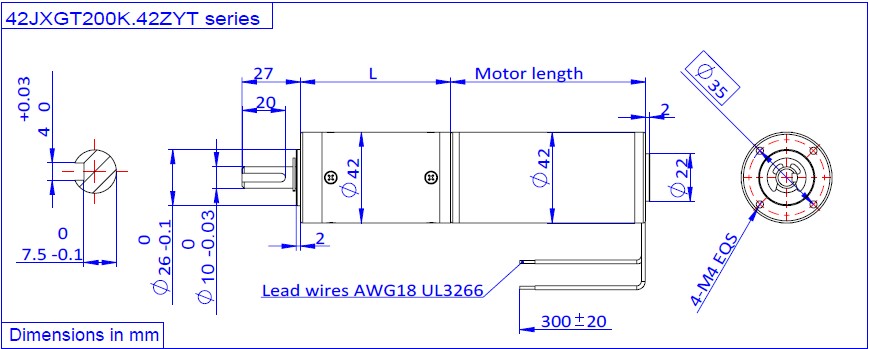

Drawing
