36BL Series Brushless Dc Motor

The detailed information

General specification


Item

Specification

Winding type

Delta

Hall effect angle

120¡ã £¨electrical angle£©

Shaft run out

0.025mm

Radial play

0.02mm@450g

End play

0.08mm@450g

Max. radial force

15N@10mm from the flange

Max. axial force

10N

Insulation class

Class B

Dielectric Strength

500VDC for one minute

Insulation resistance

100M¦¸Min.500VDC


Electric connection


Lead No.

Lead   Color

Lead Gauge

Function

DESCRIPTION

1

Red

UL1007/26AWG

VCC

SUPPLY VOLTAGE FOR HALL   SENSORS

2

Black

GND

GROUND FOR HALL SENSORS

3

Yellow

HALL A


4

Green

HALL B


5

Blue

HALL C


6

Yellow

UL1007/20AWG

PHASE   U


7

Green

     PHASE   V


8

Blue

      PHASE   W



Technique Specification


Model

36BL01A

36BL02A

36BL03A

Number of phase

3

Number of pole

4

Voltage

V

24v(Option for 12v up to 48vdc)

No   load speed

rpm

6200

8000

9500

Rated   torque

mNm

36

60

75

Rated   Speed

rpm

4800

6000

8000

Rated   Current

A

2

3.5

4.5

Rated   Power

W

18

40

63

Weight

g

185

210

250

Length

mm

45

55

65


Dimensions

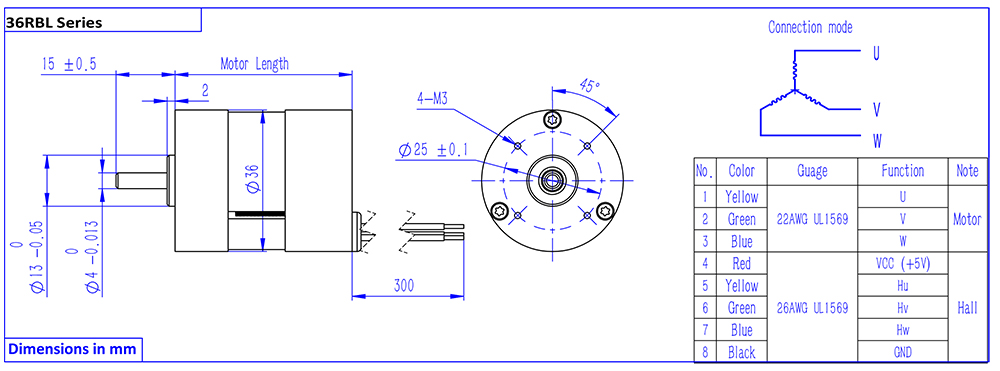

36BL drawing.jpg
