The detailed information
General specification
Item | Specification |
Winding type | Delta |
Hall effect angle | 120¡ã £¨electrical angle£© |
Shaft run out | 0.025mm |
Radial play | 0.06mm@450g |
End play | 0.08mm@450g |
Max. radial force | 15N@10mm from the flange |
Max. axial force | 10N |
Insulation class | Class B |
Dielectric Strength | 500VDC for one minute |
Insulation resistance | 100M¦¸Min.500VDC |
Electric connection
Lead No. | Lead Color | Lead Gauge | Function | DESCRIPTION |
1 | Red | UL1007/26AWG | VCC | SUPPLY VOLTAGE FOR HALL SENSORS |
2 | Black | GND | GROUND FOR HALL SENSORS | |
3 | Yellow | HALL A | ||
4 | Green | HALL B | ||
5 | Blue | HALL C | ||
6 | Yellow | UL1007/20AWG | PHASE U | |
7 | Green | PHASE V | ||
8 | Blue | PHASE W |
Technique Specification
Model | 42BLS01A | 42BLS02A | 42BLS03A | 42BLS04A | |
Number of phase | 3 | ||||
Number of pole | 8 | ||||
Voltage | V | 24v(Option for 12v up to 60vdc) | |||
No load speed | rpm | 5000 | 5000 | 5000 | 5000 |
Rated torque | Nm | 0.063 | 0.125 | 0.185 | 0.25 |
Rated Speed | rpm | 4000 | 4000 | 4000 | 4000 |
Rated Current | A | 1.7 | 3.5 | 4.6 | 6 |
Rated Power | W | 26 | 52 | 77 | 104 |
Weight | Kg | 0.3 | 0.45 | 0.65 | 0.75 |
Length | mm | 41 | 61 | 81 | 100 |

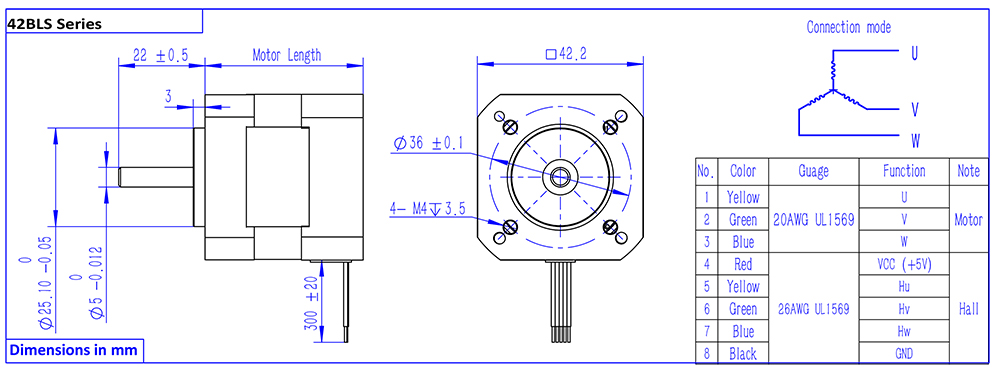

Dimensions
