The detailed information
General specification
Item | Specification |
Winding type | Delta |
Hall effect angle | 120¡ã £¨electrical angle£© |
Shaft run out | 0.025mm |
Radial play | 0.025mm@450g |
End play | 0.025mm@450g |
Max. radial force | 75N@10mm from the flange |
Max. axial force | 15N |
Insulation class | Class B |
Dielectric Strength | 500VDC for one minute |
Insulation resistance | 100M¦¸Min.500VDC |
Electric connection
Lead No. | Lead Color | Lead Gauge | Function | DESCRIPTION |
1 | Red | UL1007/26AWG | VCC | SUPPLY VOLTAGE FOR HALL SENSORS |
2 | Black | GND | GROUND FOR HALL SENSORS | |
3 | Yellow | HALL A | ||
4 | Green | HALL B | ||
5 | Blue | HALL C | ||
6 | Yellow | UL1007/20AWG | PHASE U | |
7 | Green | PHASE V | ||
8 | Blue | PHASE W |
Technique Specification
Model | 57BL(S)005A | 57BL(S)01A | 57BL(S)02A | 57BL(S)03A | 57BL(S)04A | |
Number of phase | 3 | |||||
Number of pole | 4 (Option for 8) | |||||
Voltage | V | 36v (Option for 12v 24v up to 115vdc) | ||||
No load speed | rpm | 5200 | 5200 | 5200 | 5300 | 5400 |
Rated torque | Nm | 0.055 | 0.11 | 0.22 | 0.32 | 0.42 |
Rated Speed | rpm | 4000 | 4000 | 4000 | 4000 | 4000 |
Rated Current | A | 1 | 1.8 | 3.2 | 4.7 | 6.5 |
Rated Power | W | 23 | 46 | 92 | 134 | 175 |
Weight | Kg | 0.28 | 0.5 | 0.75 | 1 | 1.25 |
Length | mm | 45 | 55 | 75 | 95 | 115 |

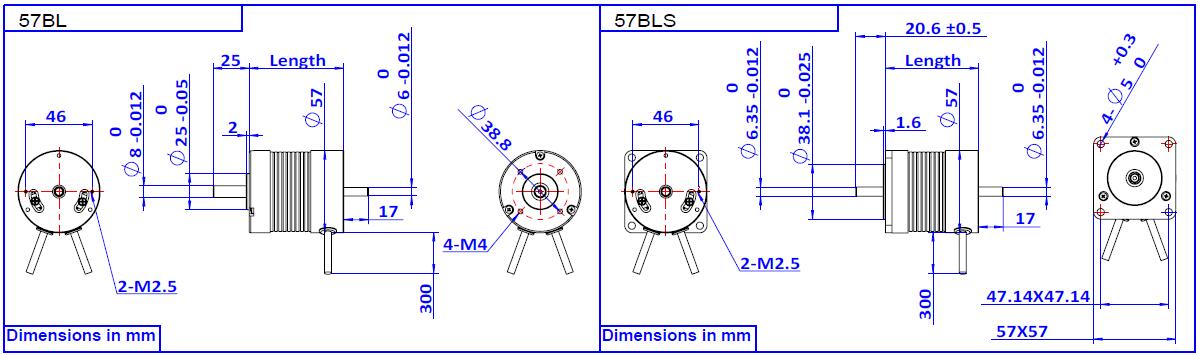

Dimensions
