The detailed information
General specification
Item | Specification |
Winding type | Delta |
Hall effect angle | 120¡ã £¨electrical angle£© |
Shaft run out | 0.05mm |
Radial play | 0.025mm@450g |
End play | 0.025mm@450g |
Max. radial force | 100N@10mm from the flange |
Max. axial force | 60N |
Insulation class | Class B |
Dielectric Strength | 500VDC for one minute |
Insulation resistance | 100M¦¸Min.500VDC |
Electric connection
Lead No. | Lead Color | Lead Gauge | Function | DESCRIPTION |
1 | Red | UL1007/26AWG | VCC | SUPPLY VOLTAGE FOR HALL SENSORS |
2 | Black | GND | GROUND FOR HALL SENSORS | |
3 | Blue | HALL A | ||
4 | Green | HALL B | ||
5 | White | HALL C | ||
6 | Red | UL1007/16AWG | PHASE U | |
7 | Yellow | PHASE V | ||
8 | Black | PHASE W |
Technique Specification
Model | 70BLS -92 | 70BLS-112 | 70BLS-122 | |
Number of phase | 3 | |||
Number of pole | 8 | |||
Voltage | V | 48v (Option for 12v 24v 36v up to 60vdc) | ||
No load speed | rpm | 3600 | 3600 | 3600 |
Rated torque | Nm | 1 | 1.4 | 1.6 |
Rated Speed | rpm | 3000 | 3000 | 3000 |
Rated Current | A | 8.5 | 11.5 | 13.5 |
Rated Power | W | 315 | 442 | 505 |
Weight | Kg | 1.8 | 2.2 | 2.6 |
Length | mm | 92 | 112 | 122 |

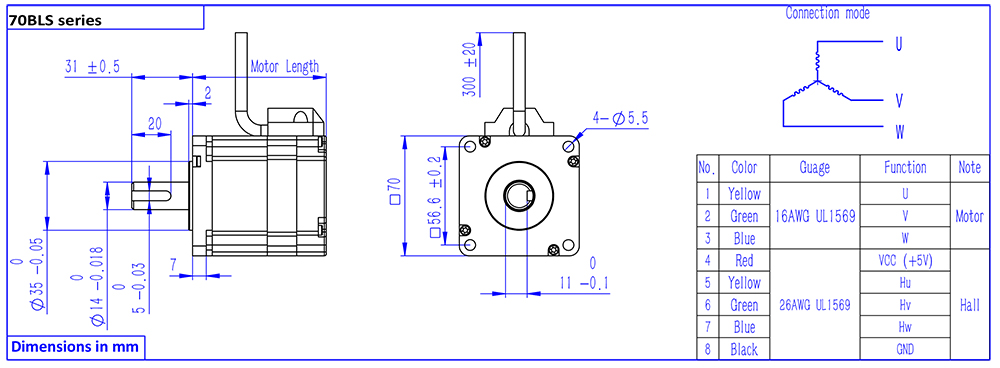

Dimensions
