42JXL100K.42RBL(helical gear)

The detailed information

42RBL Technique Specification


Model

42RBL01A

42RBL02A

42RBL03A

42RBL04A

Number of phase

3

Number of pole

8

Voltage

V

24v (Option for 12v up to 60vdc)

No load speed

rpm

5200

5200

5200

5200

Rated torque

Nm

0.018

0.08

0.15

0.2

Rated Speed

rpm

4000

4000

4000

4000

Rated Current

A

0.5

2

4.2

5.7

Rated Power

W

7.6

33.5

62

85

Weight

Kg

0.25

0.4

0.7

0.8

Length

mm

30

60

85

93


Planetary Gearbox Specifications  Gearbox Model: 42JXL100K


Ring material

Powder metal

Bearing at output

Ball bearings

Max. Radial   load(10mm from flange)

200N

Max. shaft axial   load

100N

Radial play of shaft (near to flange)

¡Ü0.06mm

Axial play of   shaft

¡Ü0.3mm

Backlash at   no-load)

¡Ü2.5¡ã

Shaft press fit   force, max

150N



Reduction ratio

Rated tolerance   torque

Max momentary   tolerance torque

 Efficiency

L(mm)

Weight(g)

1/3.7 1/5.2

1.0N.m

3.0N.m

90%

31.5¡À0.5

244

1/14 1/19 1/27

4.0N.m

12N.m

81%

42.1¡À0.5

314

1/49 1/59 1/68   1/82 1/95 1/115

8.0N.m

25N.m

73%

52.5¡À0.5

433

1/181 1/218        1/253 1/305        1/354 1/426        1/495 1/596

10N.m

30N.m

66%

62.9¡À0.5

519

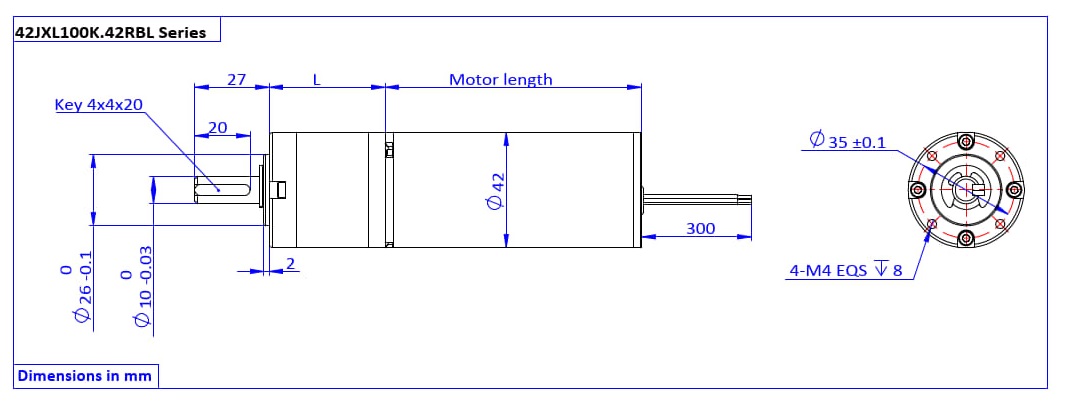

Drawing


42JXL100K.42RBL Series_1.jpg
