The detailed information
42BLS Technique Specification
Model | 42BLS01A | 42BLS02A | 42BLS03A | 42BLS04A | |
Number of phase | 3 | ||||
Number of pole | 8 | ||||
Voltage | V | 24v (Option for 12v up to 60vdc) | |||
No load speed | rpm | 5000 | 5000 | 5000 | 5000 |
Rated torque | Nm | 0.063 | 0.125 | 0.185 | 0.25 |
Rated Speed | rpm | 4000 | 4000 | 4000 | 4000 |
Rated Current | A | 1.7 | 3.5 | 4.6 | 6 |
Rated Power | W | 26 | 52 | 77 | 104 |
Weight | Kg | 0.3 | 0.45 | 0.65 | 0.75 |
Length | mm | 41 | 61 | 81 | 100 |
Planetary Gearbox Specifications Gearbox Model: 42JXL100K
Ring material | Powder metal |
Bearing at output | Ball bearings |
Max. Radial load(10mm from flange) | 200N |
Max. shaft axial load | 100N |
Radial play of shaft (near to flange) | ≤0.06mm |
Axial play of shaft | ≤0.3mm |
Backlash at no-load) | ≤2.5° |
Shaft press fit force, max | 150N |
Reduction ratio | Rated tolerance torque | Max momentary tolerance torque | Efficiency | L(mm) | Weight(g) |
1/3.7 1/5.2 | 1.0N.m | 3.0N.m | 90% | 31.5±0.5 | 244 |
1/14 1/19 1/27 | 4.0N.m | 12N.m | 81% | 42.1±0.5 | 314 |
1/49 1/59 1/68 1/82 1/95 1/115 | 8.0N.m | 25N.m | 73% | 52.5±0.5 | 433 |
1/181 1/218 1/253 1/305 1/354 1/426 1/495 1/596 | 10N.m | 30N.m | 66% | 62.9±0.5 | 519 |

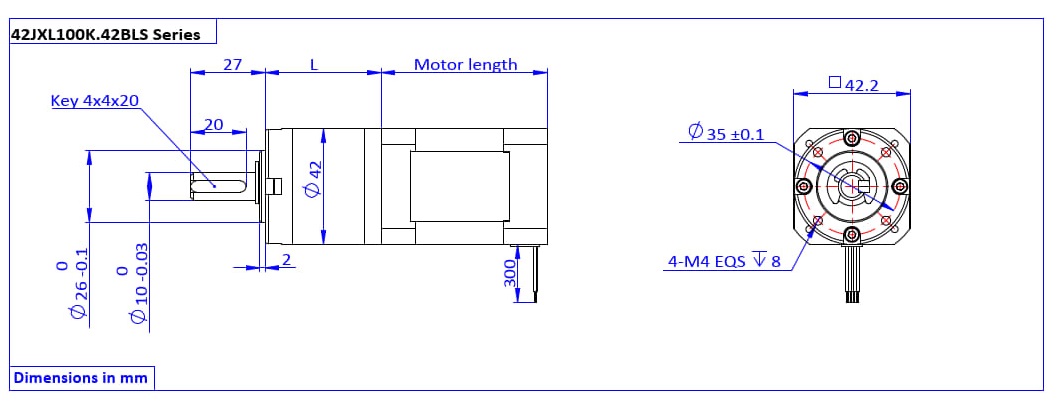

Drawing
