The detailed information

57BL Technique Specification


Model

57BL005A

57BL01A

57BL02A

57BL03A

57BL04A

Number of phase

3

Number of pole

4 (Option for 8)

Voltage

V

36v (Option for 12v 24v up to 115vdc)

No load speed

rpm

5200

5200

5200

5300

5400

Rated torque

Nm

0.055

0.11

0.22

0.32

0.42

Rated Speed

rpm

4000

4000

4000

4000

4000

Rated Current

A

1

1.8

3.2

4.7

6.5

Rated Power

W

23.04

46.07

92.15

134.03

175.92

Weight

Kg

0.28

0.5

0.75

1

1.25

Length

mm

45

55

75

95

115



Planetary Gearbox Specifications   Gearbox Model: 56JXE300K


Ring material

E : Metal

Bearing at output

Ball bearings

Max. Radial   load(10mm from flange)

250N

Max. shaft axial   load

100N

Radial play of   shaft (near to flange)

0.08mm

Axial play of   shaft

0.4mm

Backlash at   no-load)

2.5

Shaft press fit   force max

300N



Reduction ratio

Rated tolerance   torque

Max momentary   tolerance torque

Efficiency

L(mm)

Weight(g)

1/3.6 1/4.3

3.0N.m

9.0N.m

90%

37.80.5

489

1/13 1/15 1/18   1/23

12.0N.m

36N.m

81%

49.50.5

681

1/47 1/55 1/65   1/77 1/96 1/121

24.0N.m

72N.m

73%

60.80.5

871

1/154 1/187   1/220 1/260 1/307 1/409 1/514 1/645

30N.m

90N.m

66%

71.90.5

1066

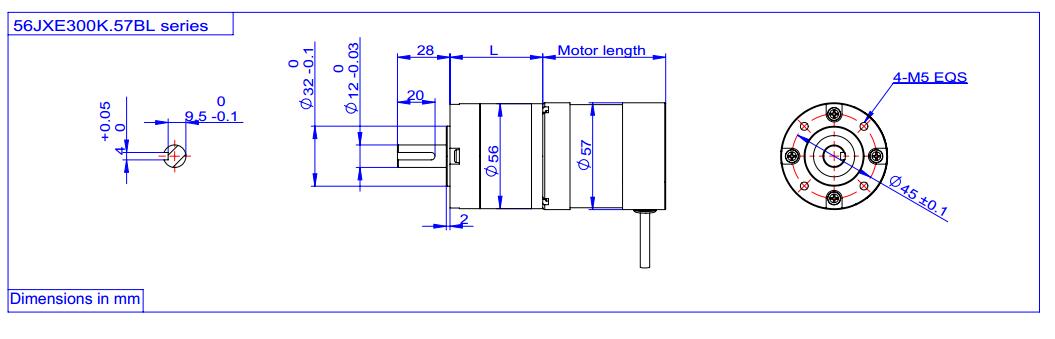

Drawing




56JXE300K.57BL Planetary Gear Motor Specification:


1.56JXE300K + 57BL01A  Planetary Gear Motor Specification:


Reduction ratio

1/3.6

1/4.3

1/13

1/15

1/18

1/23

1/47

1/55

1/65

1/77

1/96

1/121

Number of gear trains

1

1

2

2

2

2

3

3

3

3

3

3

Gearbox Length (L) (mm)

37.8

37.8

49.5

49.5

49.5

49.5

60.8

60.8

60.8

60.8

60.8

60.8

Transmission efficiency

90%

90%

81%

81%

81%

81%

73%

73%

73%

73%

73%

73%

No load speed (rpm)

1444

1209

400

347

289

226

111

95

80

68

54

43

Rated torque (N.m)

0.36

0.43

1.16

1.34

1.60

2.05

3.77

4.42

5.22

6.18

7.71

9.72

Rated speed (rpm)

1111

930

308

267

222

174

85

73

62

52

42

33

Max. permissible load in short time of   Gearbox (N.m)

9

9

36

36

36

36

72

72

72

72

72

72



Reduction ratio

1/154

1/187

1/220

1/260

1/307

1/409

1/514

1/645

Number of gear trains

4

4

4

4

4

4

4

4

Gearbox Length (L) (mm)

71.9

71.9

71.9

71.9

71.9

71.9

71.9

71.9

Transmission efficiency

66%

66%

66%

66%

66%

66%

66%

66%

No load speed (rpm)

34

28

24

20

17

13

10

8

Rated torque (N.m)

11.18

13.58

15.97

18.88

22.29

29.69

30.00

30.00

Rated speed (rpm)

34

28

24

20

17

13

10

8

Max. permissible load in short time of   Gearbox (N.m)

90

90

90

90

90

90

90

90



2.56JXE300K + 57BL02A  Planetary Gear Motor Specification:



Reduction ratio

1/3.6

1/4.3

1/13

1/15

1/18

23

1/47

1/55

1/65

1/77

1/96

1/121

Number of gear trains

1

1

2

2

2

2

3

3

3

3

3

3

Gearbox Length (L) (mm)

37.8

37.8

49.5

49.5

49.5

49.5

60.8

60.8

60.8

60.8

60.8

60.8

Transmission efficiency

90%

90%

81%

81%

81%

81%

73%

73%

73%

73%

73%

73%

No load speed (rpm)

1444

1209

400

347

289

226

111

95

80

68

54

43

Rated torque (N.m)

0.71

0.85

2.32

2.67

3.21

4.10

7.55

8.83

10.44

12.37

15.42

19.43

Rated speed (rpm)

1111

930

308

267

222

174

85

73

62

52

42

33

Max. permissible load in short time of   Gearbox (N.m)

9

9

36

36

36

36

72

72

72

72

72

72


Reduction ratio

1/154

1/187

1/220

1/260

1/307

1/409

1/514

1/645

Number of gear trains

4

4

4

4

4

4

4

4

Gearbox Length (L) (mm)

71.9

71.9

71.9

71.9

71.9

71.9

71.9

71.9

Transmission efficiency

66%

66%

66%

66%

66%

66%

66%

66%

No load speed (rpm)

34

28

24

20

17

13

10

8

Rated torque (N.m)

22.36

27.15

30.00

30.00

30.00

30.00

30.00

30.00

Rated speed (rpm)

26

21

18

15

13

10

8

6

Max. permissible load in short time of   Gearbox (N.m)

90

90

90

90

90

90

90

90


3.56JXE300K + 57BL03A Planetary Gear Motor Specification:



Reduction ratio

1/3.6

1/4.3

1/13

1/15

1/18

1/23

1/47

1/55

1/65

1/77

1/96

1/121

Number of gear trains

1

1

2

2

2

2

3

3

3

3

3

3

Gearbox Length (L) (mm)

37.8

37.8

49.5

49.5

49.5

49.5

60.8

60.8

60.8

60.8

60.8

60.8

Transmission efficiency

90%

90%

81%

81%

81%

81%

73%

73%

73%

73%

73%

73%

No load speed (rpm)

1444

1209

400

347

289

226

111

95

80

68

54

43

Rated torque (N.m)

1.04

1.24

3.37

3.89

4.67

5.96

10.98

12.85

15.18

17.99

22.43

24

Rated speed (rpm)

1111

930

308

267

222

174

85

73

62

52

42

33

Max. permissible load in short time of   Gearbox (N.m)

9

9

36

36

36

36

72

72

72

72

72

72



Reduction ratio

1/154

1/187

1/220

1/260

1/307

1/409

1/514

1/645

Number of gear trains

4

4

4

4

4

4

4

4

Gearbox Length (L) (mm)

71.9

71.9

71.9

71.9

71.9

71.9

71.9

71.9

Transmission efficiency

66%

66%

66%

66%

66%

66%

66%

66%

No load speed (rpm)

34

28

24

20

17

13

10

8

Rated torque (N.m)

30.00

30.00

30.00

30.00

30.00

30.00

30.00

30.00

Rated speed (rpm)

26

21

18

15

13

10

8

6

Max. permissible load in short time of   Gearbox (N.m)

90

90

90

90

90

90

90

90


4.56JXE300K + 57BL04A  Planetary Gear Motor Specification:



Reduction ratio

1/3.6

1/4.3

1/13

1/15

1/18

1/23

1/47

1/55

1/65

1/77

1/96

1/121

Number of gear trains

1

1

2

2

2

2

3

3

3

3

3

3

Gearbox Length (L) (mm)

37.8

37.8

49.5

49.5

49.5

49.5

60.8

60.8

60.8

60.8

60.8

60.8

Transmission efficiency

90%

90%

81%

81%

81%

81%

73%

73%

73%

73%

73%

73%

No load speed (rpm)

1444

1209

400

347

289

226

111

95

80

68

54

43

Rated torque (N.m)

1.36

1.63

4.42

5.10

6.12

7.82

14.41

16.86

19.93

23.61

24

24

Rated speed (rpm)

1111

930

308

267

222

174

85

73

62

52

42

33

Max. permissible load in short time of   Gearbox (N.m)

9

9

36

36

36

36

72

72

72

72

72

72



Reduction ratio

1/154

1/187

1/220

1/260

1/307

1/409

1/514

1/645

Number of gear trains

4

4

4

4

4

4

4

4

Gearbox Length (L) (mm)

71.9

71.9

71.9

71.9

71.9

71.9

71.9

71.9

Transmission efficiency

66%

66%

66%

66%

66%

66%

66%

66%

No load speed (rpm)

34

28

24

20

17

13

10

8

Rated torque (N.m)

30.00

30.00

30.00

30.00

30.00

30.00

30.00

30.00

Rated speed (rpm)

26

21

18

15

13

10

8

6

Max. permissible load in short time of   Gearbox (N.m)

90

90

90

90

90

90

90

90
