56JXE450K.57HBL

The detailed information

57HBL Technique Specification


Model

57HBL01A

57HBL02A

57HBL03A

57HBL04A

Number of phase

3

Number of pole

4 (Option for 8)

Voltage

V

36v (Option for 12v 24v up to 115vdc)

No load speed

rpm

5200

5200

5300

5400

Rated torque

Nm

0.14

0.28

0.43

0.49

Rated Speed

rpm

4000

4000

4000

4000

Rated Current

A

2.2

4.5

6.8

7.9

Rated Power

W

58.64

117.28

180.10

205.24

Weight

Kg

0.5

0.8

1.1

1.5

Length

mm

55

75

95

115


Planetary Gearbox Specifications   Gearbox Model: 56JXE450K


Ring material

E : Metal

Bearing at output

Ball bearings

Max. Radial   load(10mm from flange)

400N

Max. shaft axial   load

120N

Radial play of   shaft (near to flange)

0.08mm

Axial play of   shaft

0.4mm

Backlash at   no-load)

1.5

Shaft press fit force,   max

300N


Reduction ratio

Rated tolerance   torque

Max momentary   tolerance torque

Efficiency

L(mm)

Weight(g)

1/3.6 1/4.25 1/5.33

4 N.m

12 N.m

90%

40.30.5

520

1/13 1/15 1/18 1/23 1/28

18 N.m

36 N.m

81%

53.80.5

710

1/43 1/52 1/61 1/72 1/96   1/121

36 N.m

72 N.m

73%

67.20.5

900

1/154 1/187 1/220 1/260   1/307

1/409 1/514 1/645 1/809

45 N.m

90N.m

66%

80.60.5

1100

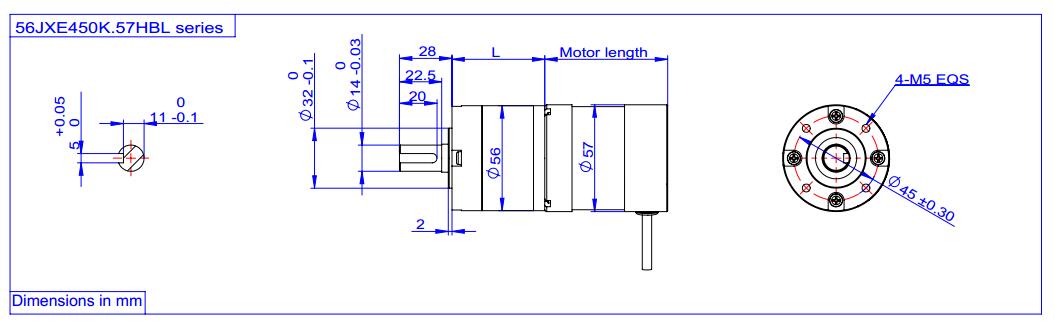

Drawing




56JXE450K.57HBL Series Planetary Gear Motor Specification:



1.56JXE450K + 57HBL01A  Planetary Gear Motor Specification:


Reduction ratio

1/3.6

1/4.25

1/5.33

1/13

1/15

1/18

1/23

1/28

1/43

1/52

1/61

1/72

Number of gear trains

1

1

1

2

2

2

2

2

3

3

3

3

Gearbox Length (L) (mm)

40.3

40.3

40.3

53.8

53.8

53.8

53.8

53.8

67.2

67.2

67.2

67.2

Transmission efficiency

90%

90%

90%

81%

81%

81%

81%

81%

73%

73%

73%

73%

No load speed (rpm)

1444

1224

976

400

347

289

226

186

121

100

85

72

Rated torque (N.m)

0.45

0.54

0.67

1.47

1.70

2.04

2.61

3.18

4.39

5.31

6.23

7.36

Rated speed (rpm)

1111

941

750

308

267

222

174

143

93

77

66

56

Max. permissible load in short time of   Gearbox (N.m)

12

12

12

36

36

36

36

36

72

72

72

72



Reduction ratio

1/96

1/121

1/154

1/187

1/220

1/260

1/307

1/409

1/514

1/645

1/809

Number of gear trains

3

3

4

4

4

4

4

4

4

4

4

Gearbox Length (L) (mm)

67.2

67.2

80.6

80.6

80.6

80.6

80.6

80.6

80.6

80.6

80.6

Transmission efficiency

73%

73%

66%

66%

66%

66%

66%

66%

66%

66%

66%

No load speed (rpm)

54

43

34

28

24

20

17

13

10

8

6

Rated torque (N.m)

9.81

12.37

14.23

17.28

20.33

24.02

28.37

37.79

45.00

45.00

45.00

Rated speed (rpm)

42

33

26

21

18

15

13

10

8

6

5

Max. permissible load in short time of   Gearbox (N.m)

72

72

90

90

90

90

90

90

90

90

90



2.56JXE450K + 57HBL02A Planetary Gear Motor Specification:


Reduction ratio

1/3.6

1/4.25

1/5.33

1/13

1/15

1/18

1/23

1/28

1/43

1/52

1/61

1/72

Number of gear trains

1

1

1

2

2

2

2

2

3

3

3

3

Gearbox Length (L) (mm)

40.3

40.3

40.3

53.8

53.8

53.8

53.8

53.8

67.2

67.2

67.2

67.2

Transmission efficiency

90%

90%

90%

81%

81%

81%

81%

81%

73%

73%

73%

73%

No load speed (rpm)

1444

1224

976

400

347

289

226

186

121

100

85

72

Rated torque (N.m)

0.91

1.07

1.34

2.95

3.40

4.08

5.22

6.35

8.79

10.63

12.47

14.72

Rated speed (rpm)

1111

941

750

308

267

222

174

143

93

77

66

56

Max. permissible load in short time of   Gearbox (N.m)

12

12

12

36

36

36

36

36

72

72

72

72


Reduction ratio

1/96

1/121

1/154

1/187

1/220

1/260

1/307

1/409

1/514

1/645

1/809

Number of gear trains

3

3

4

4

4

4

4

4

4

4

4

Gearbox Length (L) (mm)

67.2

67.2

80.6

80.6

80.6

80.6

80.6

80.6

80.6

80.6

80.6

Transmission efficiency

73%

73%

66%

66%

66%

66%

66%

66%

66%

66%

66%

No load speed (rpm)

54

43

34

28

24

20

17

13

10

8

6

Rated torque (N.m)

19.62

24.73

28.46

34.56

40.66

45.00

45.00

45.00

45.00

45.00

45.00

Rated speed (rpm)

42

33

26

21

18

15

13

10

8

6

5

Max. permissible load in short time of   Gearbox (N.m)

72

72

90

90

90

90

90

90

90

90

90


3.56JXE450K + 57HBL03A  Planetary Gear Motor Specification:


Reduction ratio

1/3.6

1/4.25

1/5.33

1/13

1/15

1/18

1/23

1/28

1/43

1/52

1/61

1/72

Number of gear trains

1

1

1

2

2

2

2

2

3

3

3

3

Gearbox Length (L) (mm)

40.3

40.3

40.3

53.8

53.8

53.8

53.8

53.8

67.2

67.2

67.2

67.2

Transmission efficiency

90%

90%

90%

81%

81%

81%

81%

81%

73%

73%

73%

73%

No load speed (rpm)

1444

1224

976

400

347

289

226

186

121

100

85

72

Rated torque (N.m)

1.39

1.64

2.06

4.53

5.22

6.27

8.01

9.75

13.50

16.32

19.15

22.60

Rated speed (rpm)

1111

941

750

308

267

222

174

143

93

77

66

56

Max. permissible load in short time of   Gearbox (N.m)

12

12

12

36

36

36

36

36

72

72

72

72



Reduction ratio

1/96

1/121

1/154

1/187

1/220

1/260

1/307

1/409

1/514

1/645

1/809

Number of gear trains

3

3

4

4

4

4

4

4

4

4

4

Gearbox Length (L) (mm)

67.2

67.2

80.6

80.6

80.6

80.6

80.6

80.6

80.6

80.6

80.6

Transmission efficiency

73%

73%

66%

66%

66%

66%

66%

66%

66%

66%

66%

No load speed (rpm)

54

43

34

28

24

20

17

13

10

8

6

Rated torque (N.m)

30.13

36

43.71

45.00

45.00

45.00

45.00

45.00

45.00

45.00

45.00

Rated speed (rpm)

42

33

26

21

18

15

13

10

8

6

5

Max. permissible load in short time of   Gearbox (N.m)

72

72

90

90

90

90

90

90

90

90

90


4.56JXE450K + 57HBL04A  Planetary Gear Motor Specification:


Reduction ratio

1/3.6

1/4.25

1/5.33

1/13

1/15

1/18

1/23

1/28

1/43

1/52

1/61

1/72

Number of gear trains

1

1

1

2

2

2

2

2

3

3

3

3

Gearbox Length (L) (mm)

40.3

40.3

40.3

53.8

53.8

53.8

53.8

53.8

67.2

67.2

67.2

67.2

Transmission efficiency

90%

90%

90%

81%

81%

81%

81%

81%

73%

73%

73%

73%

No load speed (rpm)

1444

1224

976

400

347

289

226

186

121

100

85

72

Rated torque (N.m)

1.59

1.87

2.35

5.16

5.95

7.14

9.13

11.11

15.38

18.60

21.82

25.75

Rated speed (rpm)

1111

941

750

308

267

222

174

143

93

77

66

56

Max. permissible load in short time of   Gearbox (N.m)

12

12

12

36

36

36

36

36

72

72

72

72



Reduction ratio

1/96

1/121

1/154

1/187

1/220

1/260

1/307

1/409

1/514

1/645

1/809

Number of gear trains

3

3

4

4

4

4

4

4

4

4

4

Gearbox Length (L) (mm)

67.2

67.2

80.6

80.6

80.6

80.6

80.6

80.6

80.6

80.6

80.6

Transmission efficiency

73%

73%

66%

66%

66%

66%

66%

66%

66%

66%

66%

No load speed (rpm)

54

43

34

28

24

20

17

13

10

8

6

Rated torque (N.m)

34.34

36

45.00

45.00

45.00

45.00

45.00

45.00

45.00

45.00

45.00

Rated speed (rpm)

42

33

26

21

18

15

13

10

8

6

5

Max. permissible load in short time of   Gearbox (N.m)

72

72

90

90

90

90

90

90

90

90

90
