57HBL Brushless Motor Specification
Item | Specification |
Winding type | Star |
Hall effect angle | 120° （electrical angle） |
Shaft run out | 0.025mm |
Radial play | 0.025mm@450g |
End play | 0.025mm@450g |
nsulation class | Class B |
Dielectric Strength | 500VDC for one minute |
Insulation resistance | 100MΩMin.500VDC |
Model | 57HBL-55 | 57HBL-75 | 57HBL-95 | 57HBL-115 | |
Number of phase | 3 | ||||
Number of pole | 4 (; Option for 8) | ||||
Voltage | V | 24v(24v(Option for 12v up to 115vdc) | |||
No load speed | rpm | 4000 | 4000 | 4000 | 4000 |
Rated torque | Nm | 0.14 | 0.28 | 0.43 | 0.50 |
Rated Speed | rpm | 3000 | 3000 | 3000 | 3000 |
Rated Current | A | 2.5 | 5 | 7.5 | 8.5 |
Rated Power | W | 44 | 88 | 135 | 157 |
Weight | Kg | 0.5 | 0.8 | 1.1 | 1.5 |
Length | mm | 55 | 75 | 95 | 115 |
63WG Worm Gearbox Specification
Reduction ratio | 10 | 15 | 30 | |
Efficiency | 0.65 | 0.55 | 0.45 | |
Continuous torque | Ncm | Up to 1000（metallic gears） Up to 400（non-metallic gears,） | ||
Weight of gearbox | kg | 0.4 | ||
Axial load/radial load | N | 300/350 | ||

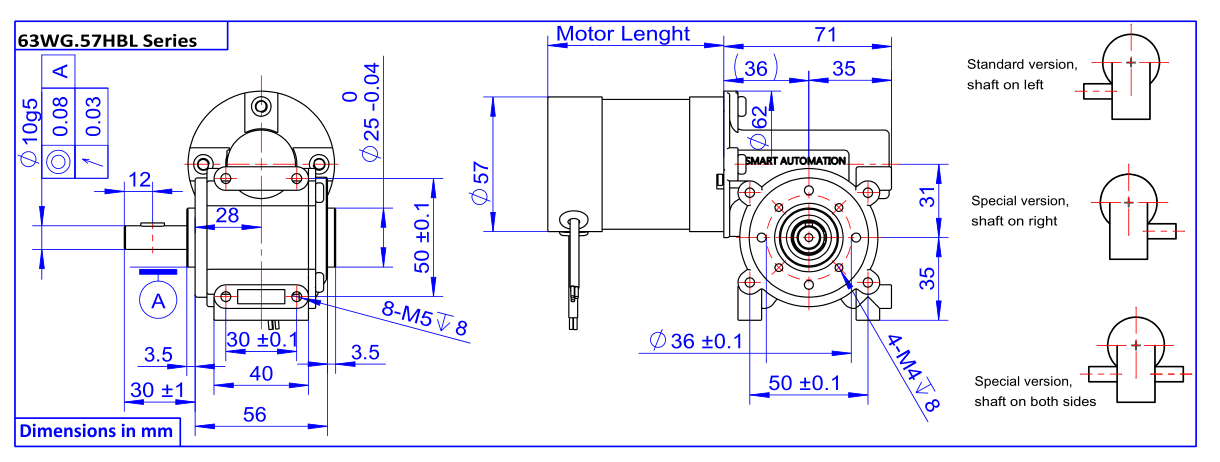

Dimensions
