General specification
Item | Specification |
Winding type | Star |
Hall effect angle | 120° （electrical angle） |
Shaft run out | 0.025mm |
Radial play | 0.025mm@450g |
End play | 0.025mm@450g |
Max. radial force | 100N@10mm from the flange |
Max. axial force | 15N |
Insulation class | Class B |
Dielectric Strength | 500VDC for one minute |
Insulation resistance | 100MΩMin.500VDC |
Technique Specification
Model | 57HBL75-IE | 57HBL95-IE | 57HBL115-IE | 57HBL135-IE | |
Number of phase | 3 | ||||
Number of pole | 4 (Option for 8) | ||||
Voltage | V | 4v(Option for 12v 36v 48v) | |||
No load speed | rpm | 4000 | 4000 | 3500 | 3000 |
Rated torque | Nm | 0.145 | 0.28 | 0.43 | 0.49 |
Rated Speed | rpm | 3000 | 3000 | 2500 | 2200 |
Rated Current | A | 2.5 | 5 | 6 | 6 |
Rated Power | W | 45 | 88 | 113 | 113 |
Weight | Kg | 0.55 | 0.85 | 1.15 | 1.55 |
Length | mm | 75 | 95 | 115 | 135 |

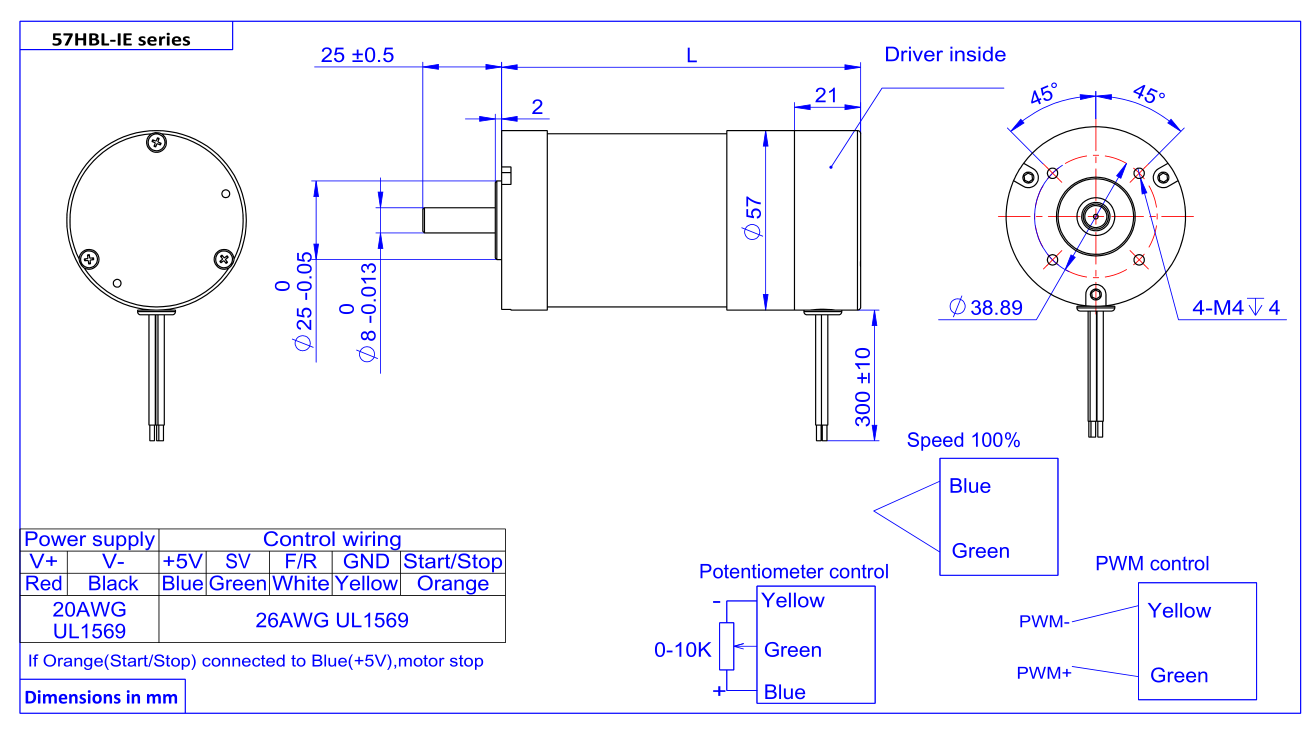

Dimensions & Control Diagram
