The detailed information

Motor Main Specifications:

Bearing: High Quality Ball Bearing

Protection Class: IP54

Insulation Class: Class F / Working Temperature: -40~+140

Certifications: CE and ROHS



 Electric connection

Lead No.

Lead Color

Lead Gauge

Function

DESCRIPTION

1

Red

UL1007/26AWG

VCC

SUPPLY VOLTAGE FOR HALL   SENSORS

2

Black

GND

GROUND FOR HALL SENSORS

3

Yellow

HALL A


4

Green

HALL B


5

Blue

HALL C


6

Yellow

UL1007/14AWG

PHASE U


7

Green

 PHASE V


8

Blue

 PHASE W




Technique Specification

Model

63RBL-50

63RBL-60

63RBL-70

63RBL-80

63RBL-90

63RBL-100

63RBL-110

Number of   phase

3

Number of   pole

4 Option 8

Voltage

V

24v (Option   for 12v up to 230vdc)

No   load speed

rpm

4000

4000

4000

4000

4000

4000

4000

No   load current

A

0.5

0.6

0.7

0.8

0.9

1.0

1.1

Rated   torque

Nm

0.2

0.31

0.4

0.5

0.6

0.7

0.8

Rated   Speed

rpm

3050

3050

3050

3000

3000

3000

3000

Rated   Current

A

 3.5

5.5

 7.0

8.5

10.5

12

14

Rated   Power

W

64

100

 128

157

188

219

251

Weight

Kg

 0.80

1.0

1.2

1.4

 1.6

1.8

2.0

Length

mm

 50

 60

 70

 80

 90

100

110

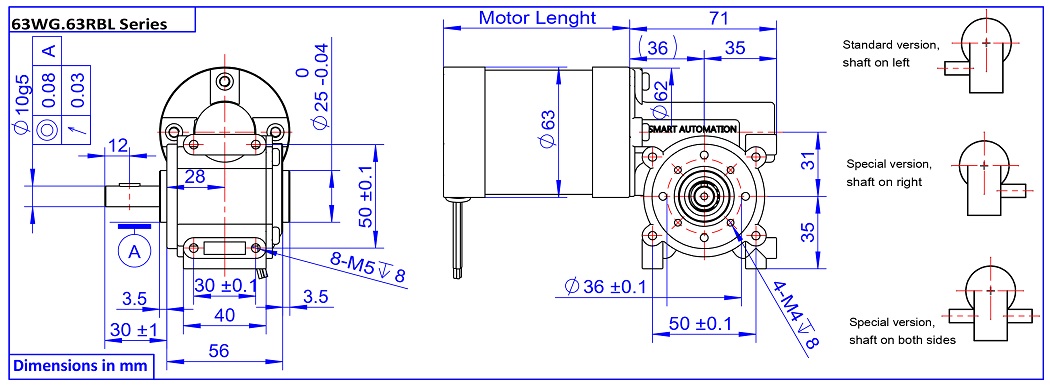

63WG Series Worm Gearbox Specifications:

Reduction ratio


10

15

30

Efficiency


0.65

0.55

0.45

Continuous torque

Ncm

Up to 1000metallic gears

Up   to 400non-metallic gears

Weight of gearbox

kg

0.4

Axial load/radial load

N

300/350
