The detailed information
General specification
Item | Specification |
Winding type | Star |
Hall effect angle | 120° （electrical angle） |
Shaft run out | 0.025mm |
Radial play | 0.05mm@450g |
End play | 0.05mm@450g |
Max. radial force | 150N@10mm from the flange |
Max. axial force | 60N |
Insulation class | Class B |
Dielectric Strength | 500VDC for one minute |
Insulation resistance | 100MΩMin.500VDC |
Electric connection
Lead No. | Lead Color | Lead Gauge | Function | DESCRIPTION |
1 | Red | UL1007/26AWG | VCC | SUPPLY VOLTAGE FOR HALL SENSORS |
2 | Black | GND | GROUND FOR HALL SENSORS | |
3 | Yellow | HALL A | ||
4 | Green | HALL B | ||
5 | Blue | HALL C | ||
6 | Yellow | UL1007/14AWG | PHASE U | |
7 | Green | PHASE V | ||
8 | Blue | PHASE W |
Technique Specification
Model | 63RBL-50 | 63RBL-60 | 63RBL-70 | 63RBL-80 | 63RBL-90 | 63RBL-100 | 63RBL-110 | |
Number of phase | 3 | |||||||
Number of pole | 4 （Option 8） | |||||||
Voltage | V | 24v (Option for 12v up to 230vdc) | ||||||
No load speed | rpm | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 |
No load current | A | 0.5 | 0.6 | 0.7 | 0.8 | 0.9 | 1.0 | 1.1 |
Rated torque | Nm | 0.2 | 0.31 | 0.4 | 0.5 | 0.6 | 0.7 | 0.8 |
Rated Speed | rpm | 3050 | 3050 | 3050 | 3000 | 3000 | 3000 | 3000 |
Rated Current | A | 3.5 | 5.5 | 7.0 | 8.5 | 10.5 | 12 | 14 |
Rated Power | W | 64 | 100 | 128 | 157 | 188 | 219 | 251 |
Weight | Kg | 0.80 | 1.0 | 1.2 | 1.4 | 1.6 | 1.8 | 2.0 |
Length | mm | 50 | 60 | 70 | 80 | 90 | 100 | 110 |

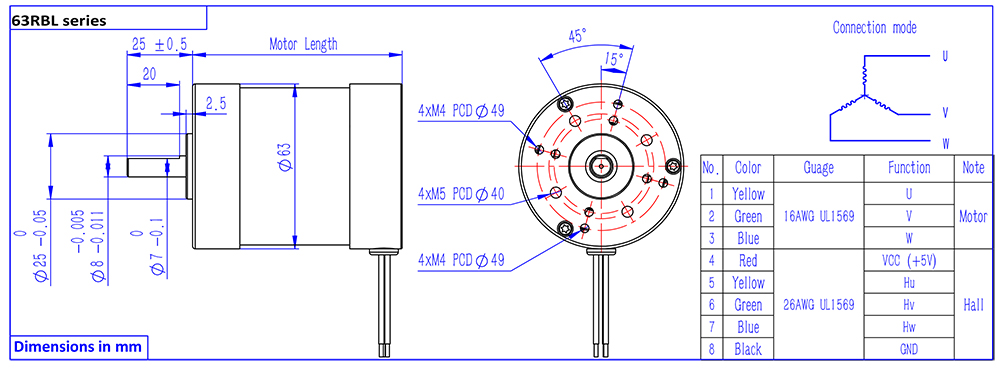

Dimensions
