Winding type

Star

Hall effect angle

120° （electrical angle）

Shaft run out

0.025mm

Radial play

0.025mm@450g

End play

0.08mm@450g

Max. radial force

28N@20mm from the flange

Max. axial force

10N

Insulation class

Class B

Dielectric Strength

500VDC for one minute

Insulation resistance

100MΩMin.500VDC

Number of phase

3

Number of   pole

8

Voltage

V

24v

No   load speed

rpm

4000

4000

4000

4000

Rated   torque

mNm

20

80

150

200

Rated   Speed

rpm

3000

3000

3000

2500

Rated   Current

A

0.4

1.5

2.7

2.9

Rated   Power

W

6.3

25

47

52

Weight

Kg

0.25

0.4

0.7

0.8

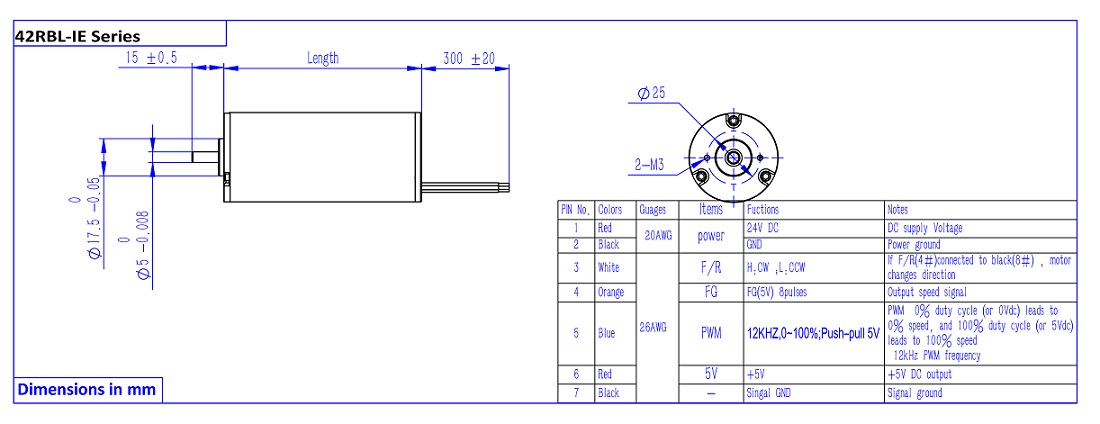

Length

mm

32

62

87

97
